Hub Lateral,Scale Trap,Collectors-Distributors
0.01,0.02,0.05,0.1,0.15,0.20,0.25,0.30......3.0mm also achieved upon request
Galvanized low carbon (LCG),stainless steel (304,316 etc.)
based on customer's needs
According to the flow raiting and the vessel diameter
4, 6, 8, 10,as clients requirement
0.75,1.5,1.80,2.30,3.00,3.30,3.70,0.75*1.5,1.0*2.0
Share Us:
Product Description

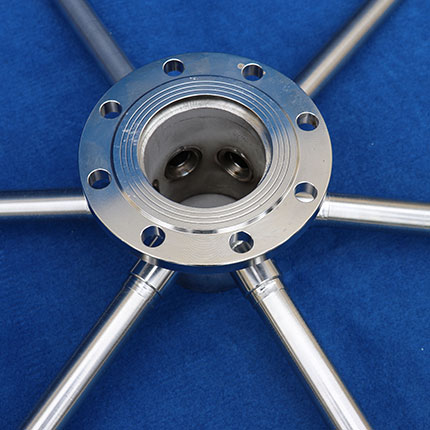

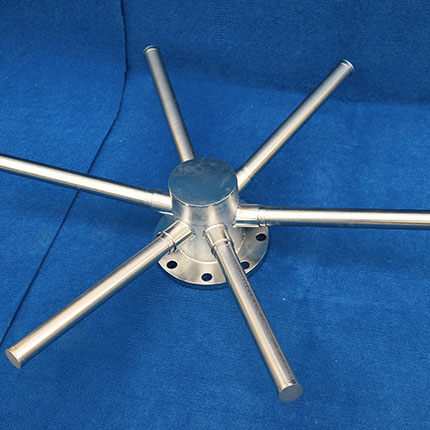

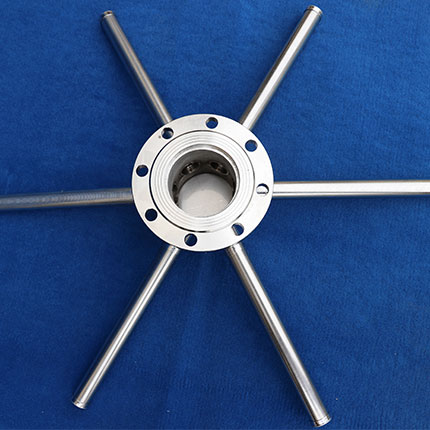

Hub laterals/ scale traps/ collectors-distributors comprise many slot tubes (laterals). They are positioned in parallel connected to a central pipe (header), or, positioned in star-form and connected to a central collector hub. A distributor-collector system is used in a treatment vessel containing for instance resin, active carbon, catalyst or another molecular bed, to retain the treatment media in the vessel. Normally an assembly of header and laterals is used at the top of the vessel for in-flow distribution. Another one is used at the bottom of the vessel for collecting the treated out-flow. The distributor-collector system creates an optimal flow distribution of liquids or gases throughout the vessel and avoids creation of preferential paths.
Specification
Material Galvanized low carbon (LCG),stainless steel (304,316 etc.)
Wedge Wire (mm) Width:0.75 1.5 1.80 2.30 3.00 3.30 3.70 0.70.75*1.5,1.0*2.0
Support Rod (mm) Width:1.00 1.80 2.00 3.00 4.00 5.00
  Height:2.00 2.50 3.00 5.00 6.00 5.00
Branch Quantity(pcs) 4, 6, 8, 10,as clients requirement
Nomional Diameter According to the flow raiting and the vessel diameter
Width as clients requirement
Length based on customer's needs
Slot size 0.01,0.02,0.05,0.1,0.15,0.20,0.25,0.30......3.0mm also achieved upon request
Note: Other specifications can be customized according to your requirement.
